Upon starting, an erasing magnet is mechanically propelled towards the rear of the disc. The Azimuth Engine gear then rotates it through a full 360 degrees clearing the disc of any writing. The magnetic stylus moves over the disc and it’s two engines lower and raise it whilst moving the stylus over the disc’s surface. Using an intriguing combination of disc rotations and stylus movements, the information is written in a script font reminiscent of Victorian handwriting. Whilst each engine is working, a series of gears are illuminated through the respective viewing ports, showing which of the four engines is currently contributing to the writing process. The Gregorian Scribulator is constructed on a beautiful polished wooden plaque. The mechanisms are visible and it’s fascinating to watch the writing being formed by such a strange combination of movements. The engineering components have been specifically designed and manufactured for this machine. The turned brass components and the use of ten high quality ball bearings ensure a long reliable working life.  If the date or time need to be adjusted, the Adjustment Valve can be employed. Turning this clockwise will cause the stylus to point to the required adjustment engraving, a, b, c, d, e or f, which correspond to the adjustment you wish to make. The disc also rotates until the relevant value, engraved on the outside of the disc, lines up with the arrow. Further turning the valve will change the value. The engraved characters around the disc are another beautiful feature of the machine reminiscent of how steam powered machines had to be adjusted - not a digital input in sight! In addition, re-writing the current information can be achieved by turning the valve anti-clockwise! • The Gregorian Scribulator is 37cm high by 40cm wide by 17cm deep. • Despite being designed to look like it is powered by compressed air or steam, it is actually powered by a small plug in mains adaptor. • The writing is created using a magnetic stylus, there's no cheating with digital displays! • After the Scribulator sees no movement for an hour, the lamp fades down and it ceases to operate, only waking up when it again sees movement for the first time the next day. • Each one is individually numbered and the engravings can be personalised if required. The Gregorian Scribulator came about as I never knew the date, or for that matter the month or day! I wondered how to create a steampunk machine, reminiscent of Victorian engineering, that could erase, write and display the information without the need for a digital display. My children had played with magnetic scribblers and I wondered whether this technology could be employed! Sure enough, after some experimentation, I found a cut down 'scribbler' could be used.  I built one, with the vague idea that you could write anything if the stylus could be moved over the entirety of the disc. It was then time to programme it. After much Googling of trigonometry, the software slowly came together. Very rewarding when it stopped producing spaghetti drawings and began to write the text!

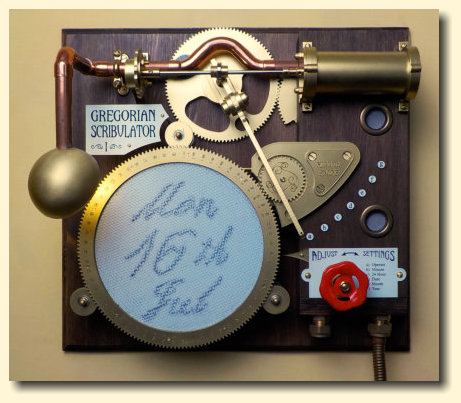

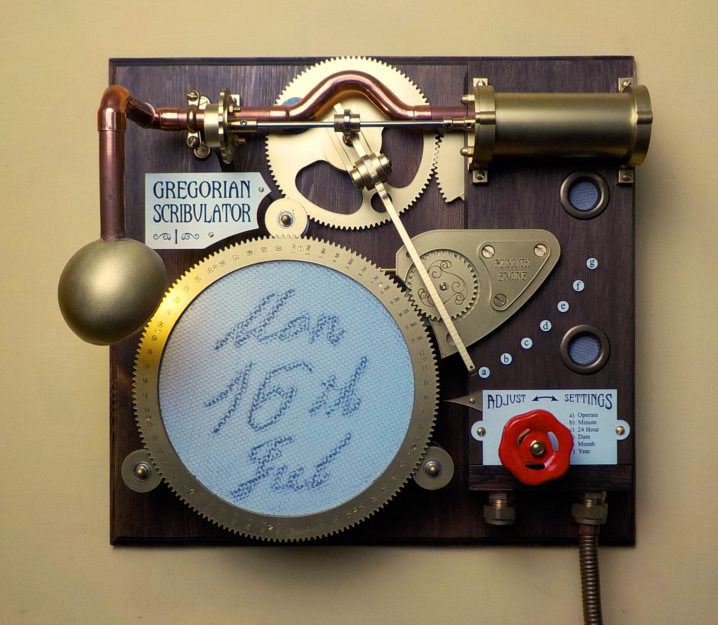

Gregorian Scribulator
When it first sees movement each morning, the Gregorian Scribulator erases the previous day’s information before magically writing the new day, date and month with its magnetic stylus. The machine uses a small computer to calculate the daily information, ensuring it will always be correct and will not require monthly or even annual adjustments. It even has a small internal battery allowing it to continually calculate the information even when unplugged from the mains supply.

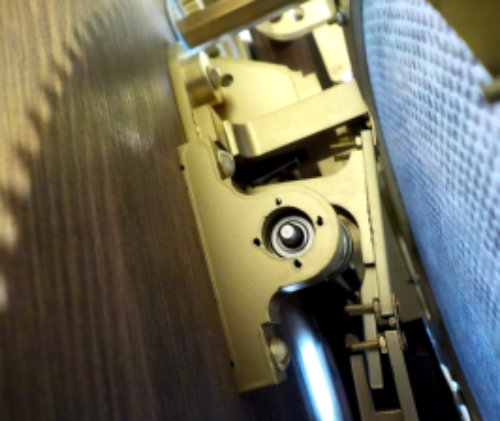

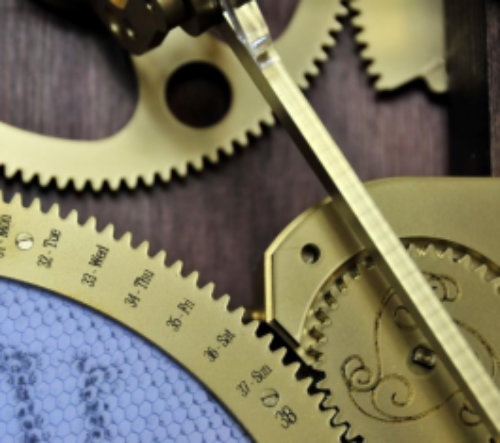

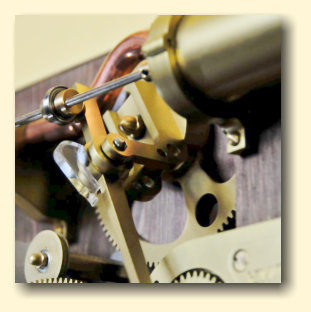

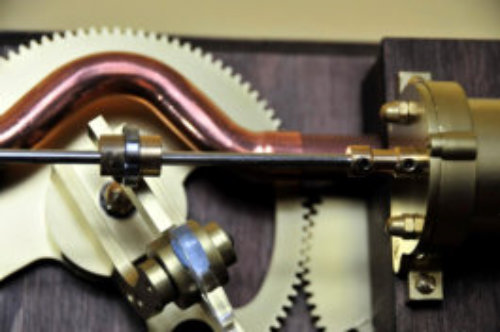

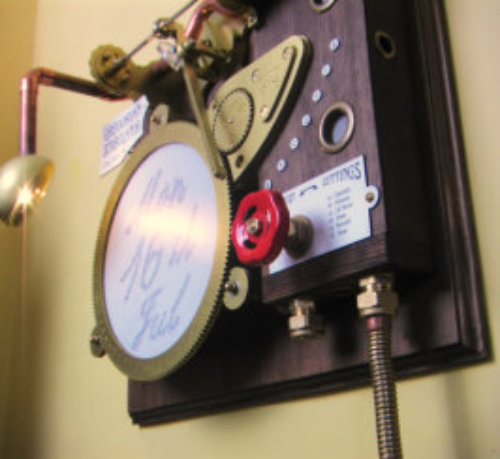

Gregorian Scribulator steampunk date writing machine Gregorian Scribulator steampunk date writing machine Gregorian Scribulator steampunk date writing machine with lamp Gregorian Scribulator steampunk date writing machine with lamp Closeup of gears and drawing disc from steampunk drawing machine Closeup of gears and drawing disc from steampunk drawing machine Copper pipe and brass gear from steampunk writing machine Copper pipe and brass gear from steampunk writing machine Gears and stylus moving mechanisms from steampunk writing machine Gears and stylus moving mechanisms from steampunk writing machine Steampunk drawing machine eraser mechanism Steampunk drawing machine eraser mechanism Connecting Machines The Gregorian Scribulator, Climatic Revelator and Chronological Engine can be connected together with steam pipes of varying length. This enables synchronous operation, where each machine performs its hourly or movement controlled tasks sequentially, providing a joyous visual and audible mechanical experience! Visit The Shop Visit The Shop
Visit The Shop Visit The Shop
Gregorian Scribulator
When it first sees movement each morning, the Gregorian Scribulator erases the previous day’s information before magically writing the new day, date and month with its magnetic stylus. The machine uses a small computer to calculate the daily information, ensuring it will always be correct and will not require monthly or even annual adjustments. It even has a small internal battery allowing it to continually calculate the information even when unplugged from the mains supply.
Upon starting, an erasing magnet is mechanically propelled towards the rear of the disc. The Azimuth Engine gear then rotates it through a full 360 degrees clearing the disc of any writing. The magnetic stylus moves over the disc and it’s two engines lower and raise it whilst moving the stylus over the disc’s surface. Using an intriguing combination of disc rotations and stylus movements, the information is written in a script font reminiscent of Victorian handwriting. Whilst each engine is working, a series of gears are illuminated through the respective viewing ports, showing which of the four engines is currently contributing to the writing process. The Gregorian Scribulator is constructed on a beautiful polished wooden plaque. The mechanisms are visible and it’s fascinating to watch the writing being formed by such a strange combination of movements. The engineering components have been specifically designed and manufactured for this machine. The turned brass components and the use of ten high quality ball bearings ensure a long reliable working life.  If the date or time need to be adjusted, the Adjustment Valve can be employed. Turning this clockwise will cause the stylus to point to the required adjustment engraving, a, b, c, d, e or f, which correspond to the adjustment you wish to make. The disc also rotates until the relevant value, engraved on the outside of the disc, lines up with the arrow. Further turning the valve will change the value. The engraved characters around the disc are another beautiful feature of the machine reminiscent of how steam powered machines had to be adjusted - not a digital input in sight! In addition, re-writing the current information can be achieved by turning the valve anti- clockwise! • The Gregorian Scribulator is 37cm high by 40cm wide by 17cm deep. • Despite being designed to look like it is powered by compressed air or steam, it is actually powered by a small plug in mains adaptor. • The writing is created using a magnetic stylus, there's no cheating with digital displays! • After the Scribulator sees no movement for an hour, the lamp fades down and it ceases to operate, only waking up when it again sees movement for the first time the next day. • Each one is individually numbered and the engravings can be personalised if required. The Gregorian Scribulator came about as I never knew the date, or for that matter the month or day! I wondered how to create a steampunk machine, reminiscent of Victorian engineering, that could erase, write and display the information without the need for a digital display. My children had played with magnetic scribblers and I wondered whether this technology could be employed! Sure enough, after some experimentation, I found a cut down 'scribbler' could be used.  I built one, with the vague idea that you could write anything if the stylus could be moved over the entirety of the disc. It was then time to programme it. After much Googling of trigonometry, the software slowly came together. Very rewarding when it stopped producing spaghetti drawings and began to write the text!
Gregorian Scribulator steampunk date writing machine Gregorian Scribulator steampunk date writing machine Gregorian Scribulator steampunk date writing machine with lamp Gregorian Scribulator steampunk date writing machine with lamp Closeup of gears and drawing disc from steampunk drawing machine Closeup of gears and drawing disc from steampunk drawing machine Copper pipe and brass gear from steampunk writing machine Copper pipe and brass gear from steampunk writing machine Gears and stylus moving mechanisms from steampunk writing machine Gears and stylus moving mechanisms from steampunk writing machine Steampunk drawing machine eraser mechanism Connecting Machines The Gregorian Scribulator, Climatic Revelator and Chronological Engine can be connected together with steam pipes of varying length. This enables synchronous operation, where each machine performs its hourly or movement controlled tasks sequentially, providing a joyous visual and audible mechanical experience! Visit The Shop Visit The Shop
